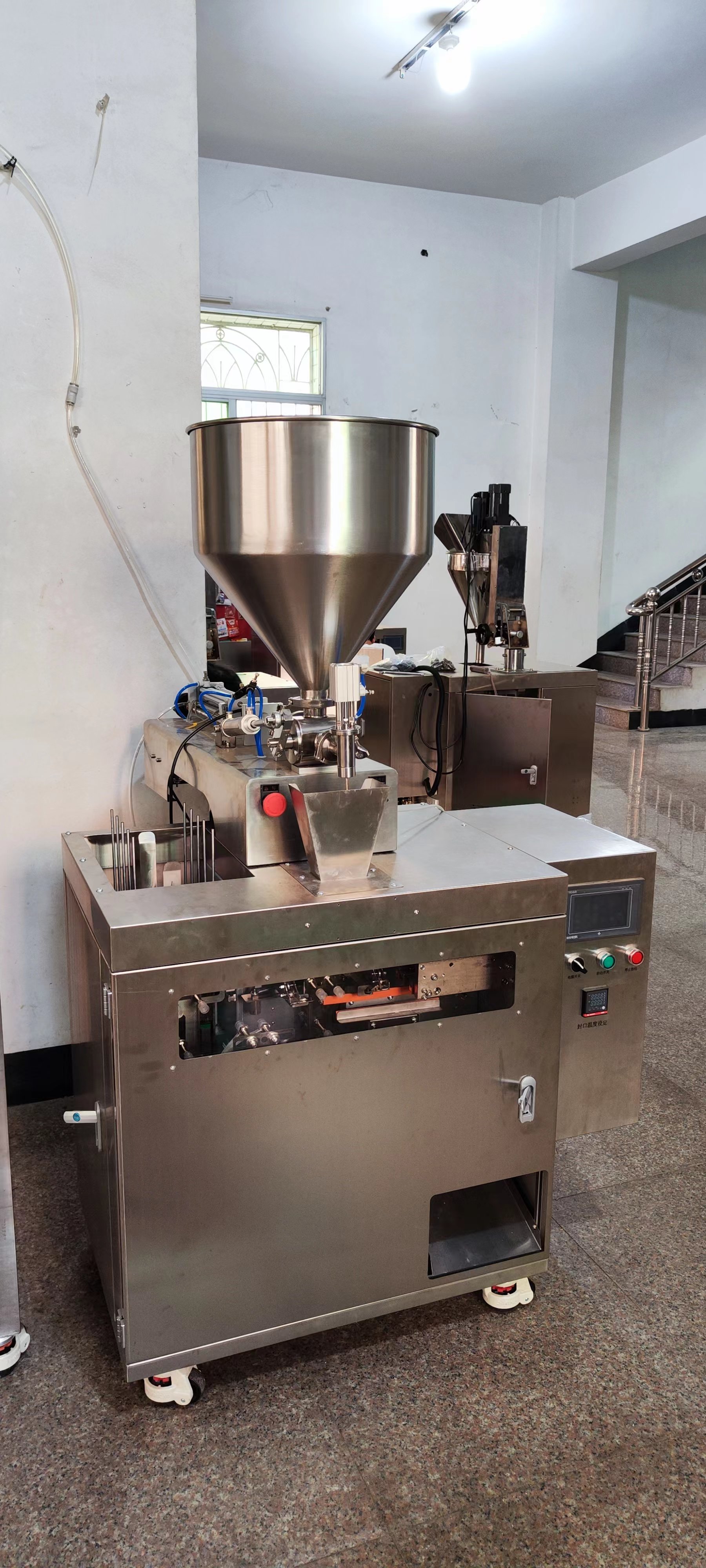

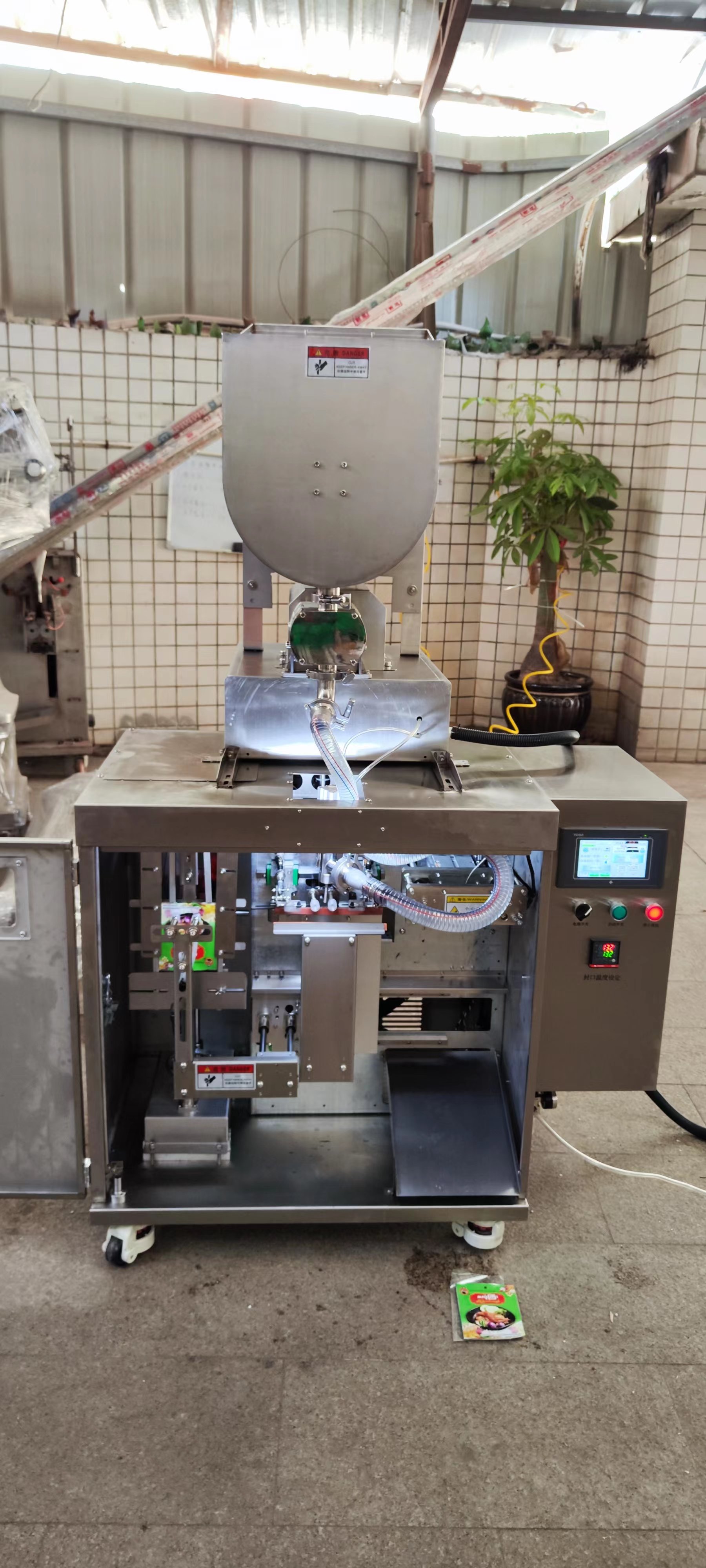

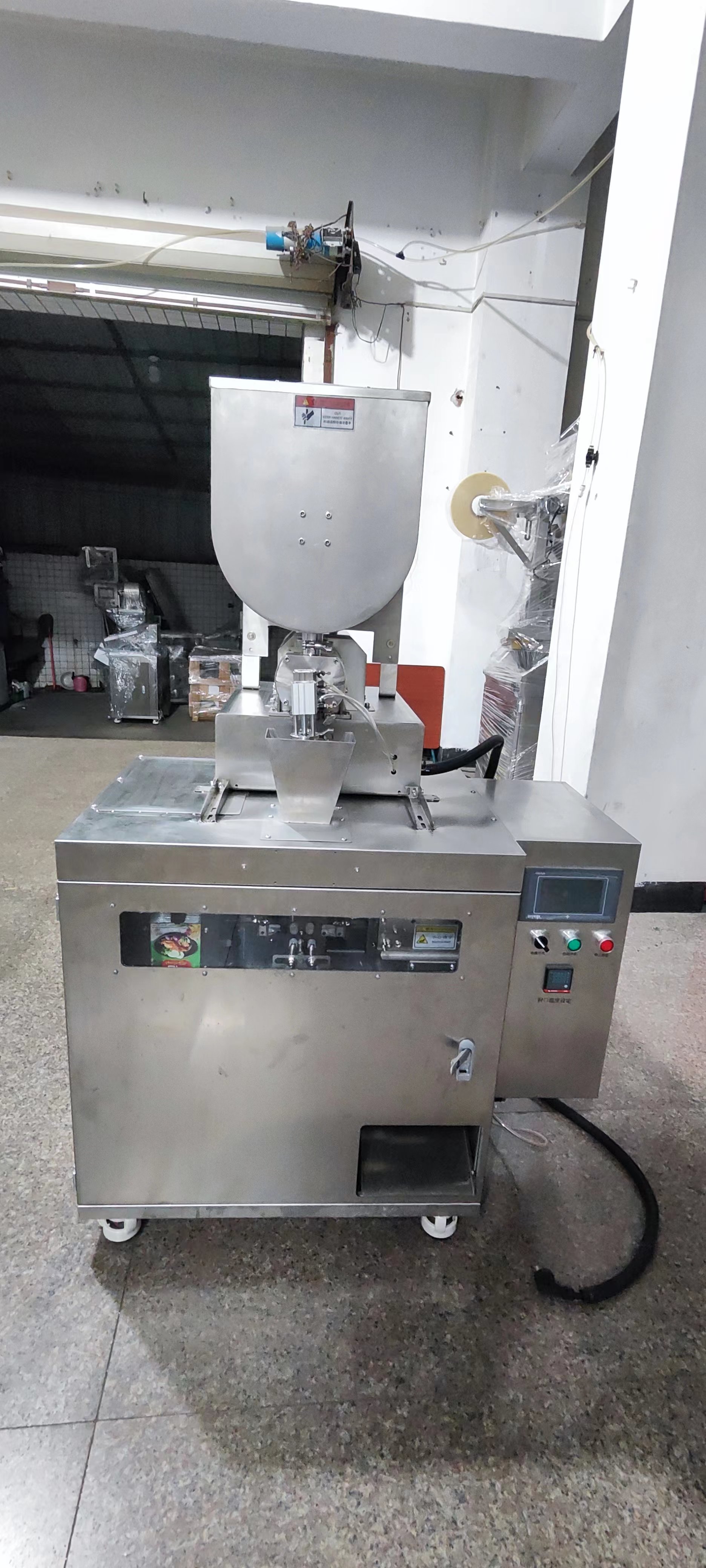

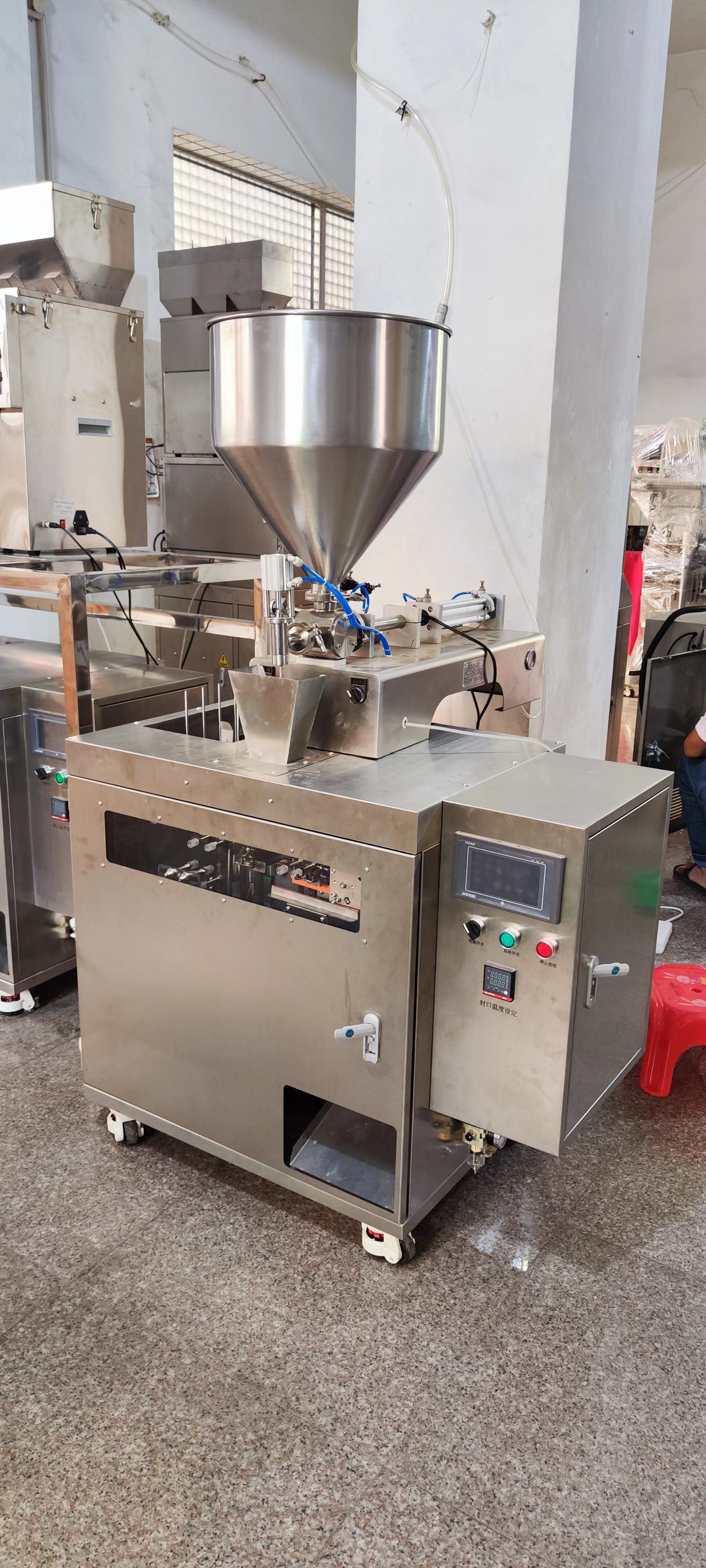

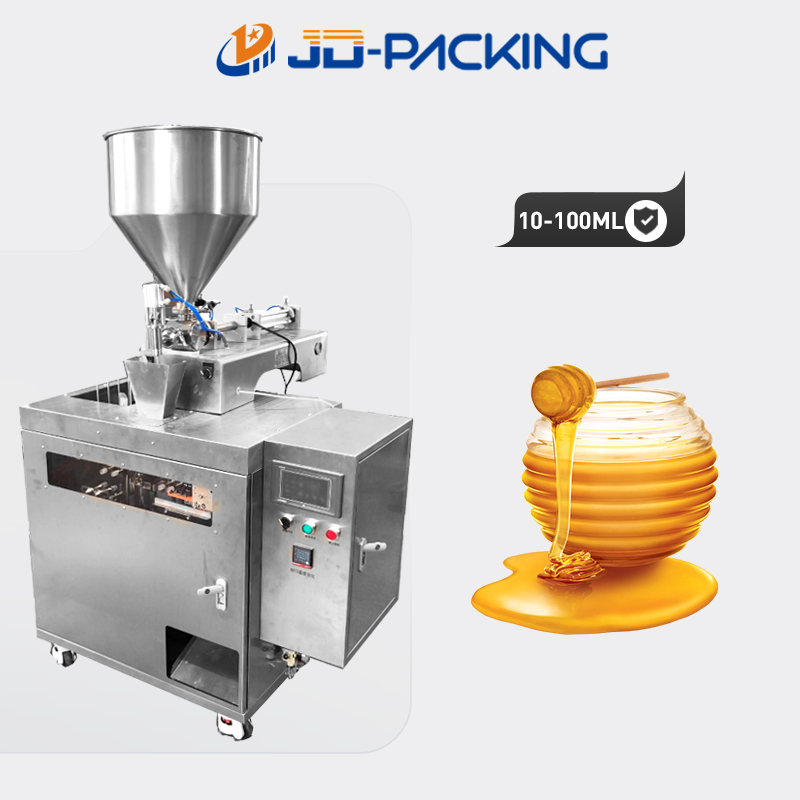

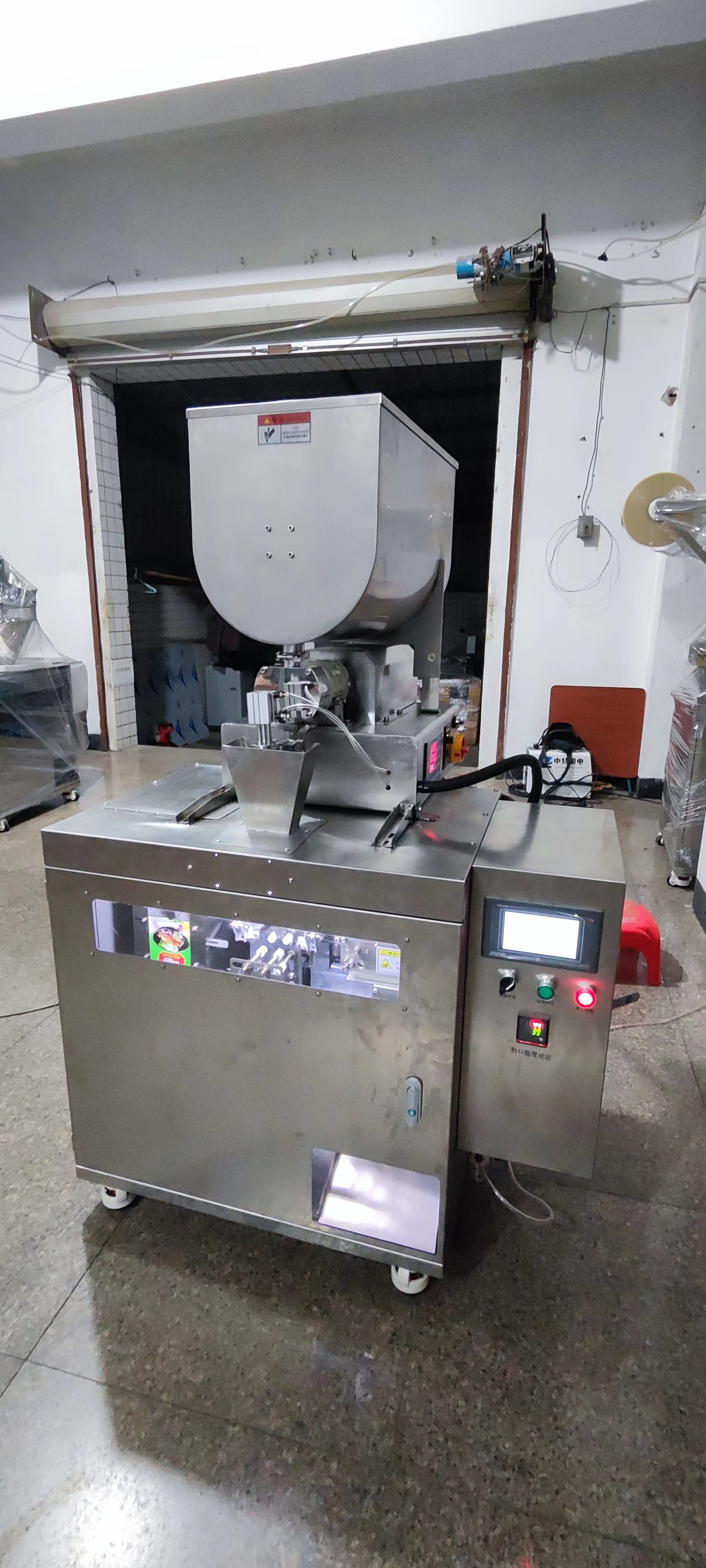

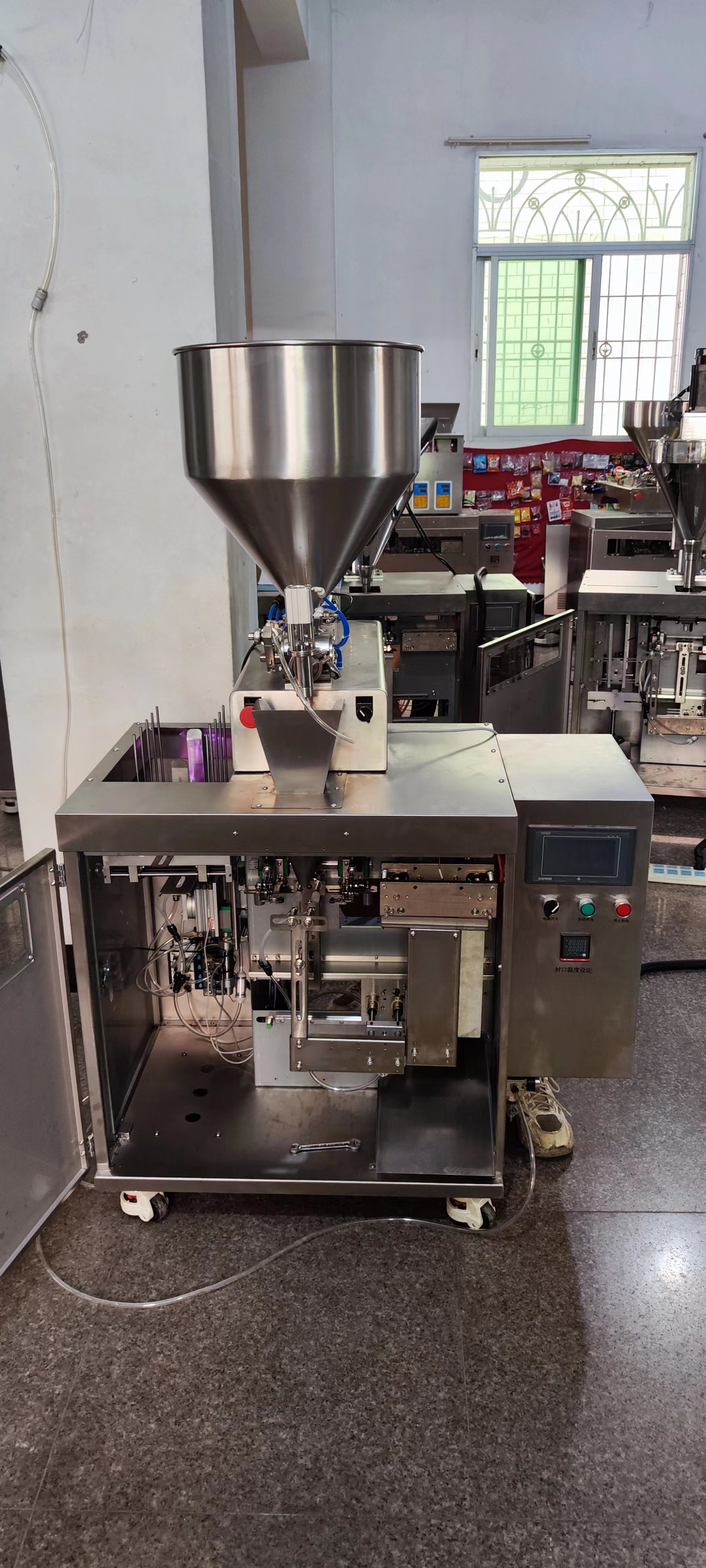

100ML膏体给袋式包装机
  • 100ML膏体给袋式包装机100ML膏体给袋式包装机100ML膏体给袋式包装机100ML膏体给袋式包装机
    • 100ML膏体给袋式包装机
    • 产品型号: C-G100
    • 技术参数

      Technical Parameters

      计量范围:5-500g

      Measuring Scope

      包装速度:20 - 30 bags / min

      Packing Speed

      外型尺寸:980*650*1555 mm

      Dimension ( L*W*H )

      工作气压:0.6-0.8MPa/0.83m³/min

      Working pressure

      整机重量:160kg

      Weight

      率:AC~220V/ 0.73kw

      aggregate capacity

      包装精度:±0.5g

      Packaging accuracy

      料仓容量:80L

      Silo capacity

      袋仓容量  450个-(袋子厚度10丝)

      Bag bin capacity 450 - (bag thickness 10 silk)

      打包尺寸/重量:1100*750*1750mm//240kg

      Package size/weight


    • 产品描述
    • 产品特点
    • 操作视频
    • 安装使用
    • 维修售后
    • 功能讲解
    • 客户现场



    特点  Characteristic

    1、本设备搭配伺服转子泵,可实现酱料、膏体/液体类的自动灌装。

    The touch device is equipped with pneumatic plunger pump to realize automatic filling of paste (also compatible with automatic filling of pure liquid materials)。

    2、只需要设定灌装量即可,无需做任何机械调整,即可实现不同规格重量的全自动包装摸屏操作。

    It only needs to set the filling volume, and without any mechanical adjustment, it can realize full-automatic packaging touch screen operation of different specifications and weights.

    3、PLC 控制,性能稳定、调整方便、灌装准确。

    Touch screen operation, PLC control, stable performance, convenient adjustment, accurate detection.

    4、适用多种尺寸袋子,从5*7CM到18*26CM袋子规格范围内都适用。

    Suitable for a variety of bag sizes, from 5*7CM to 18*26CM bag specification range.

    5、灌装和包装部份采用分体式结构,可单独使用,也可以组合使用。操作简单,满足多种需求,节约成本。

    The filling and packing part adopts the split-type structure, which can be used alone or in combination. Simple operation, meet a variety of needs, cost saving.
